Actuator Units

Three Variants, Many Possibilities

Technical Specifications

Please download our documentation to learn more about our products.

Caplex Advantage

Star icon
Tethered off-board actuation and control
Star icon
Best-in-class torque to weight ratio
Star icon
Proven flexibility, usability, and robustness

Ready to Work Together?

Please don’t hesitate to contact us by following the button below to our intake form. We will get back to you within 1-2 business days.

Caplex Advantage

Star icon
Tethered off-board actuation and control
Star icon
Best-in-class torque to weight ratio
Star icon
Proven flexibility, usability, and robustness

Meet our Actuator Units

Humotech Actuator units represent one of the two primary off-board components that make up a Caplex system. Now available in three variants: Full-Sized Single-Axis, Full-Sized Multi-Axis,and Portable Two-Axis. In typical Caplex System setups, these units receive velocity commands over EtherCAT from the Caplex Software via our Control Hardware.

Interested in one, three, four, or more motor-units? Please contact us today as we’re actively designing the next generation for greater modularity.

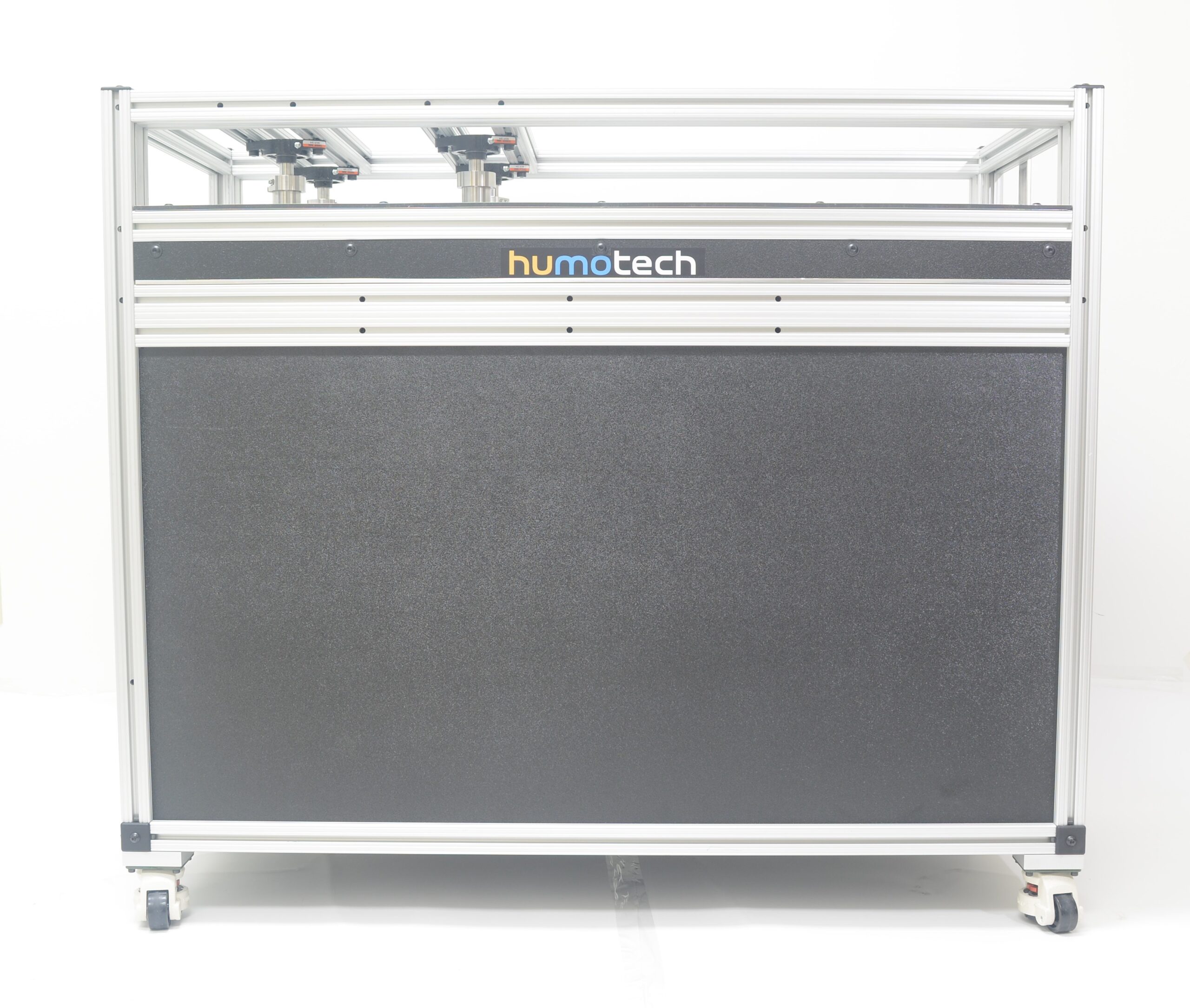

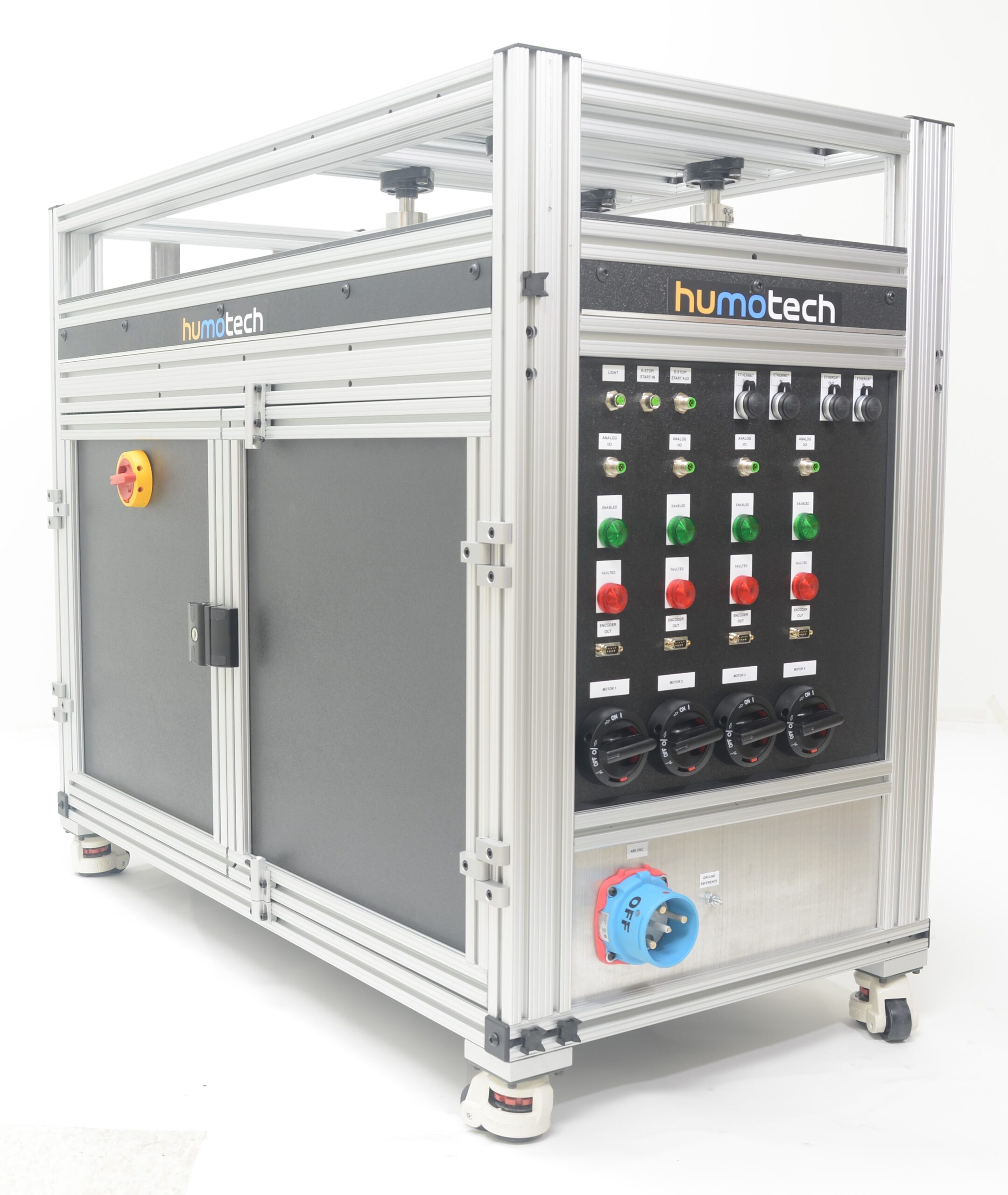

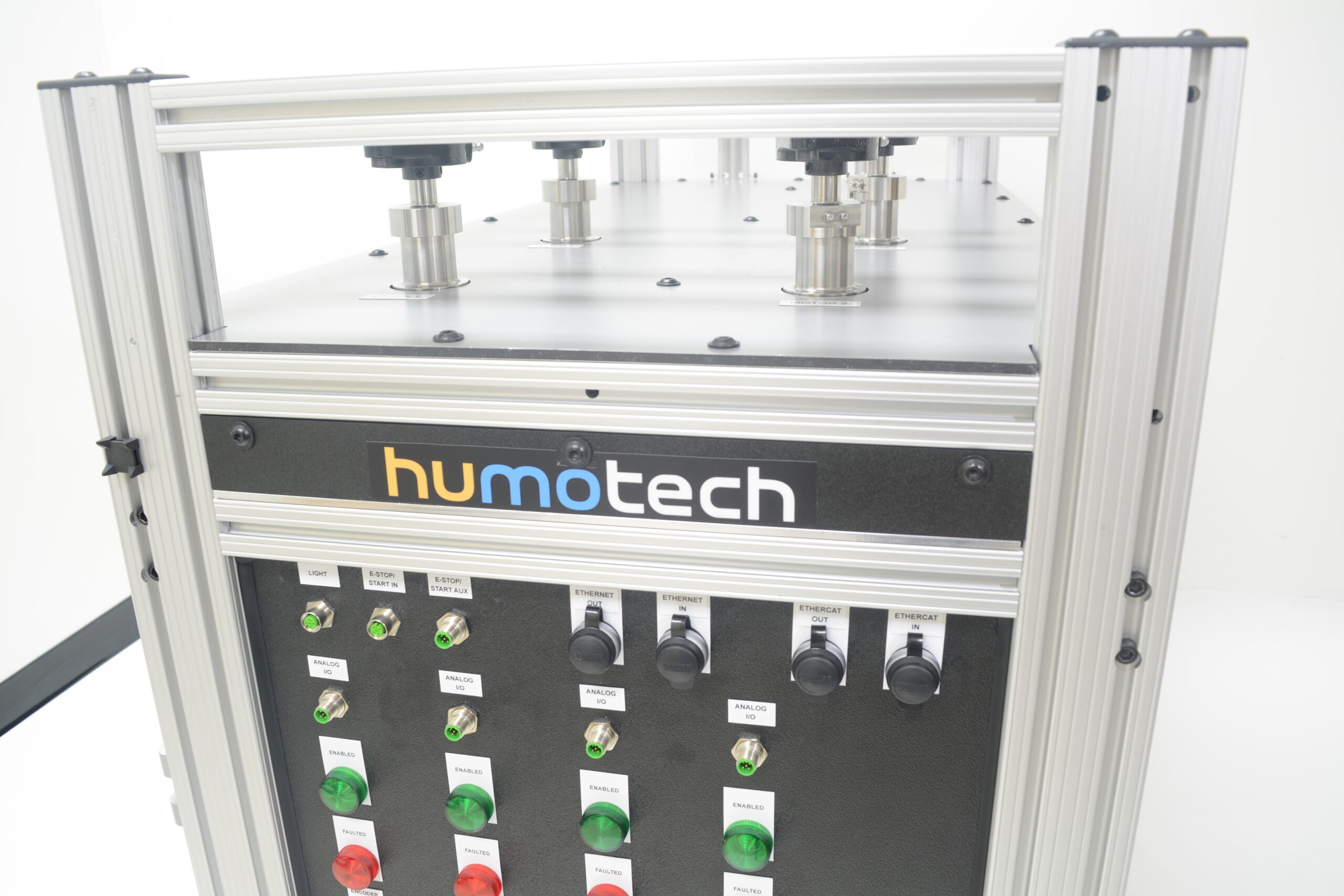

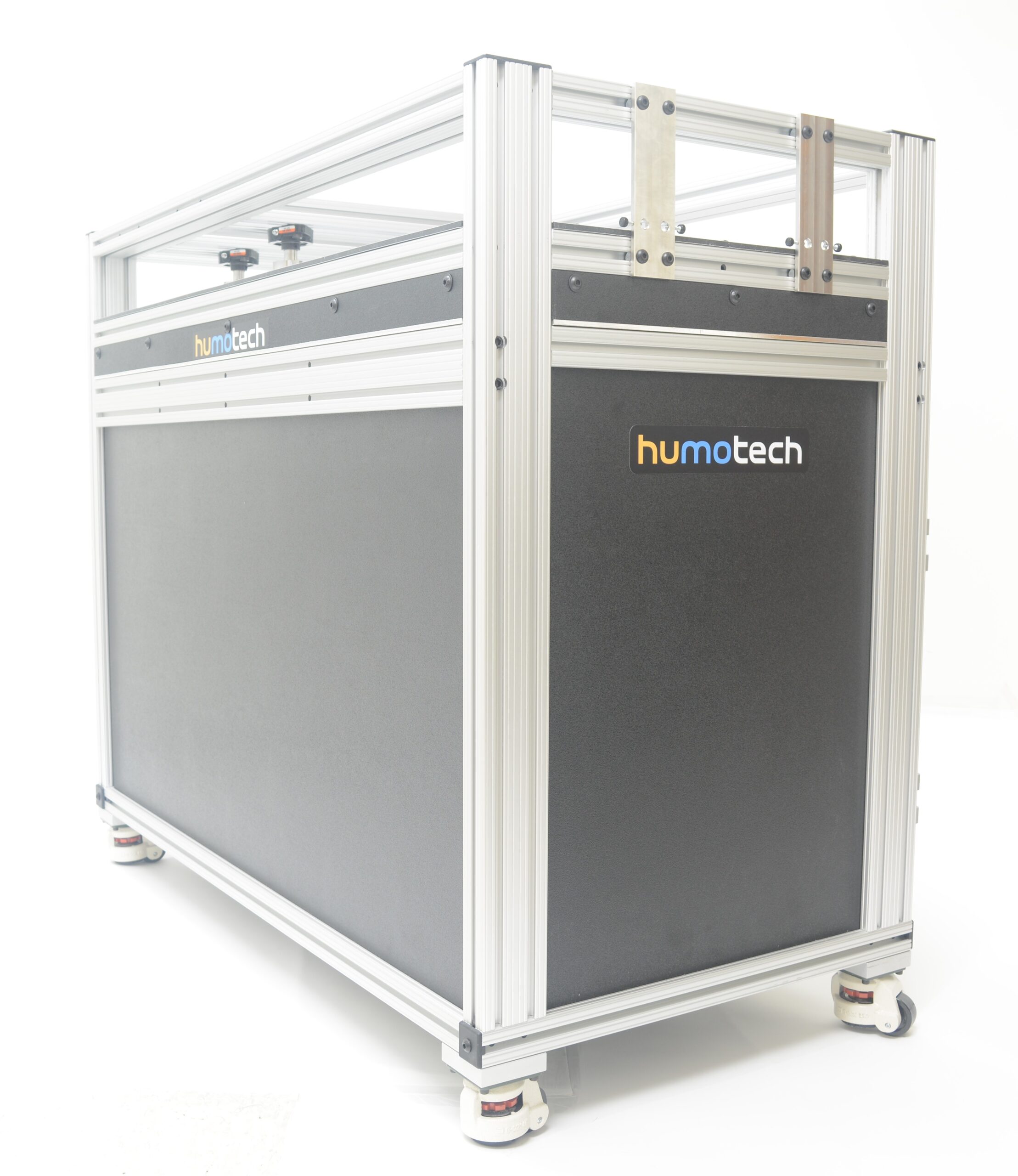

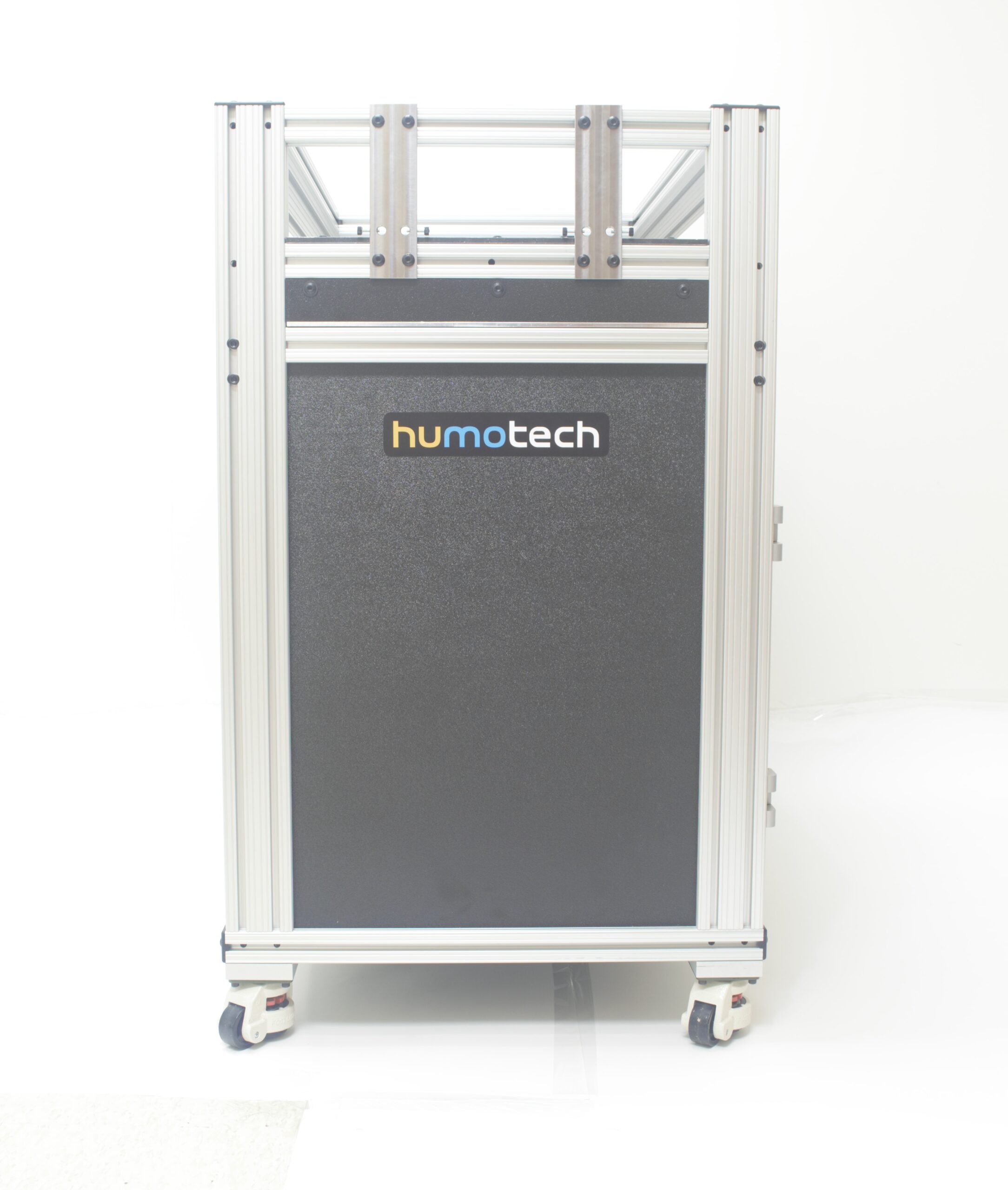

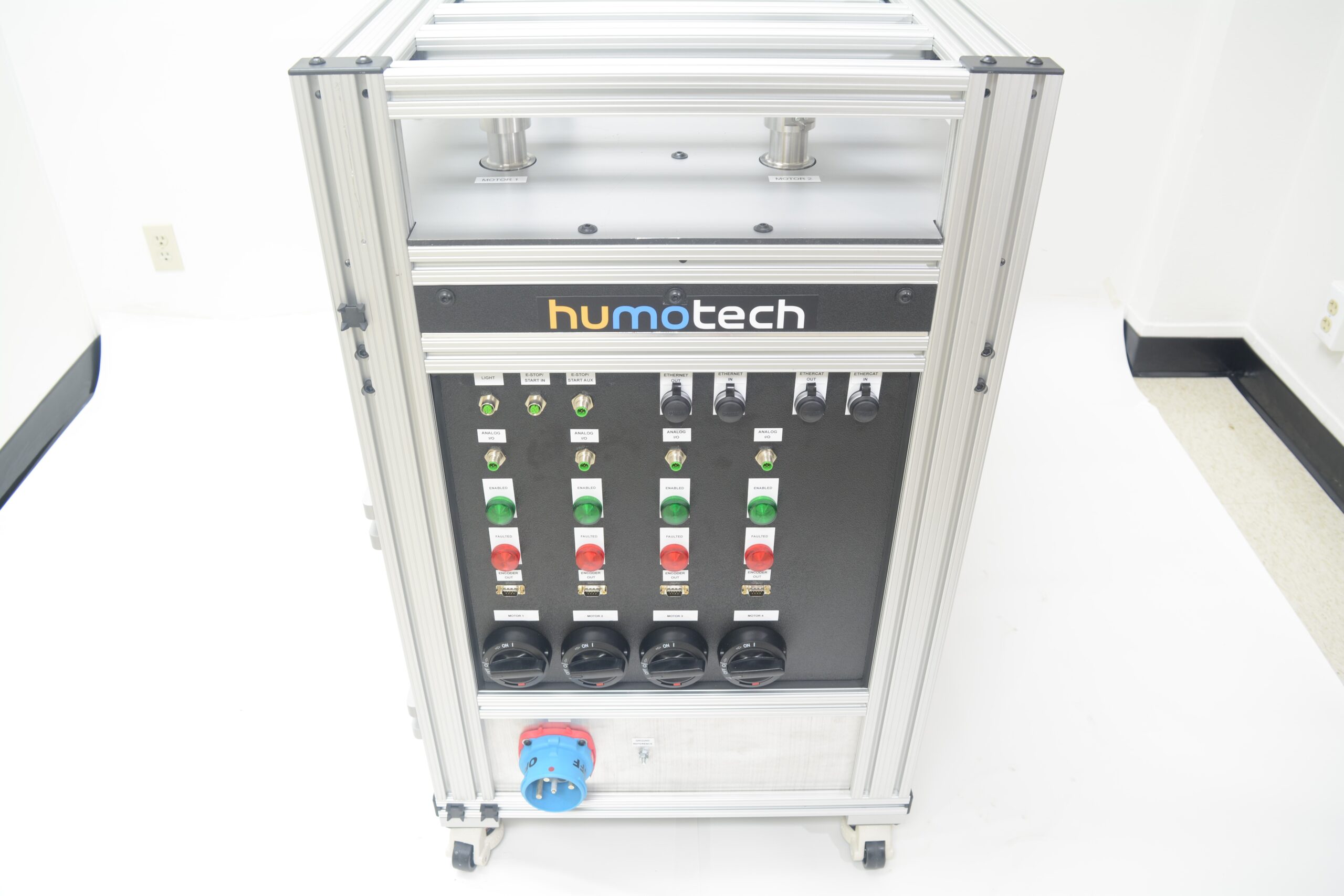

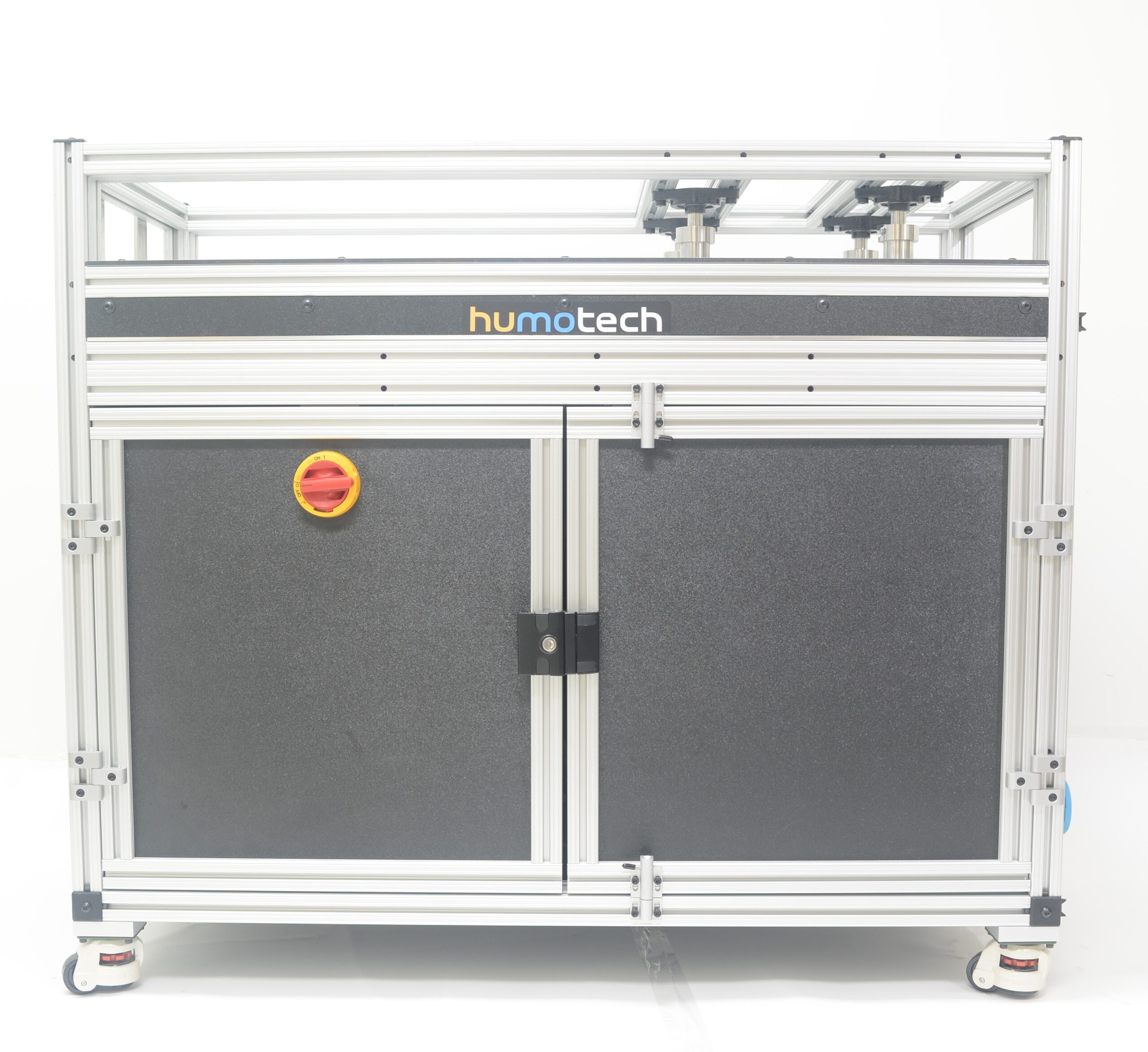

Full-Sized, Multi-Axis Actuator Unit

The Full-Sized Multi-Axis Actuator Unit incorporates three, four, or five industrial servo motors and drives within a wheeled floor-standing unit for actuation of Humotech (or other cable-actuated) wearable devices. The Unit is designed for use inside of a lab and powered by 3-phase AC wall power. Multiple units can be linked to actuate any number of degrees-of-freedom.

Portable, Two-Axis Actuator Unit

The Portable Two-Axis Actuator Unit is contained within the backpack/benchtop portion of the Portable Caplex System. It incorporates high-torque-density servomotors currently in a two-axis configuration contained within a fixed frame for actuation of a Humotech (or other cable-actuated) wearable device. The Unit is designed for use inside or outside of the lab (though it’s not tested against water/mud/dust—yet!) and powered by single-phase AC wall power or a lithium polymer battery.

Full-Sized, Single-Axis Actuator Unit

The Single-Axis Actuator Unit incorporates an industrial servo motor and drive within a wheeled floor-standing unit for actuation of a Humotech (or other cable-actuated) wearable device. The Unit is designed for use inside of a lab and powered by 3-phase AC wall power. Multiple units can be linked to actuate any number of degrees-of-freedom. For high degree-of-freedom systems, we recommend the Multi-Axis Actuator Unit (see below).

Technical Specifications

Please download our documentation to learn more about our products.
